Mosfet in TOLL package



The P232LG10GNK is a next-generation N-channel MOSFET developed by Shindengen, designed to meet the demands of high power density in compact spaces.
Thanks to its compact TOLL (Thin Outline Leadless) package, it offers high thermal reliability and excellent electrical performance, making it ideal for industrial and automotive applications.

This device is part of a wide TOLL MOSFET series offered by Shindengen, which includes various options in terms of output current, Rdson and nominal voltage, thus providing flexible solutions for a broad range of design requirements.

Shindengen’s TOLL MOSFET series offers :

• Low Ron contributes to miniaturization and higher effeciency of equipment
• 25% smaller mounting area compared to D2PAK (TO-263)
• Tch=175°C Automotive compatible/Small and thin package
• 300A ultra high current device
• Wettable Flank structure allows automatic appearance support after mounting
• Compatible with Kelvin source terminals can be developed to reduce switching loss.



Ideal for:

• High-efficiency DC/DC converters

• Uninterruptible Power Supplies (UPS)

• Electric motor inverters

• Switching power supplies (SMPS)

• 48V automotive systems





• ---

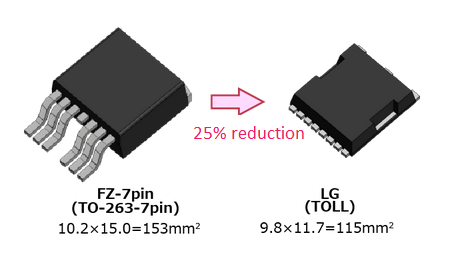

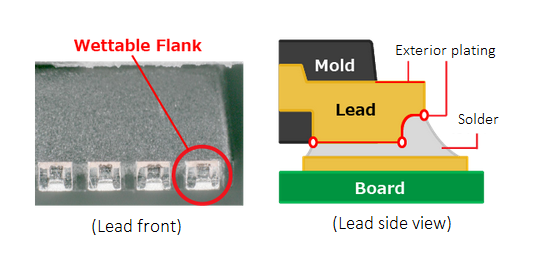

  Compared to the conventional package (D2PAK(TO-263)), the mounting area is                                     By adopting a wettable Flank structure, it is possible to automatically adjust
  reduced by 25%  contributin to downsizing of equipment.                                                                                                    the appearance after mounting.
