5ELACN3T23xxxx16

Certifications title

Edison Opto Corporation Ltd.

DOB Series 230 Vac

Compared with DC LED modules, DOB(driver on board) Series module doesn't need to connect external driver so that it can help to reduce the circuit cost and the size of luminaires. It is more convenient for luminaire design with DOB Series module. Users can adjust the brightness of LED lamps easily with Smart lighting dimming system.

Image	Code	Colour	CCT[°K;nm]	Power [W]	CRI	Size[mm]

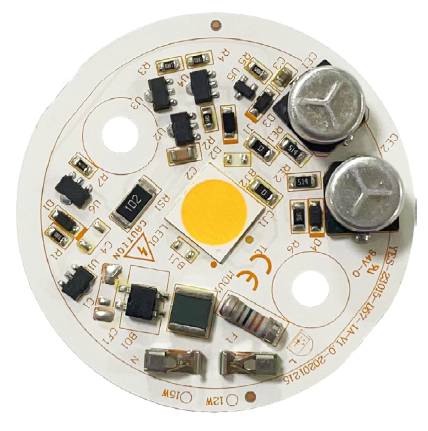

	5ELACN3T23xxxx16 Warm White | 2700-4000K | 12-15W | 90 | Ø57mm	Warm White	2700-4000K	12-15W	90	Ø57mm	DOB III AC Module Ø57mm 230VAC 2700-4000K 12-15W 120° CRI>90 Flicker <10%
	5ELACN3T2300XXX1X Warm White | 2700-4000K | 4-5W | 80/90 | Ø34mm	Warm White	2700-4000K	4-5W	80/90	Ø34mm	DOB III AC Module Ø34mm 230VAC 2700-4000K 4-5W 120° CRI80-90 Flicker <10%
	5ELACN3T23xxxx26 Warm White | 2700/3000/4000K | 4/6/8W | 90 | Ø38mm	Warm White	2700/3000/4000K	4/6/8W	90	Ø38mm	DOB III AC Module Ø38mm 230VAC 2700/3000/4000K 4/6/8W 120° CRI90 Flicker<10% New
	5ELACN3T23XXXX24 CW/NW/WW | 2700-5700K | 6~12W | 90 | Ø47mm	CW/NW/WW	2700-5700K	6~12W	90	Ø47mm	DOB III AC Module Ø47mm 230VAC 2700~5700K 6~12W 120° CRI90 Flicker<10% New
