OBO-2624F

OBO-2624F

Certifications title
Certificazione RoHs

Buzzer Magnetic transducer SMD Magnetic Transducer
SMD Electromagnetic Transducer 95db Min. At 400hz-20-28Vo-p 40x26x19.5mm

Documentation

  • Type
    Buzzer Magnetic transducer SMD Magnetic Transducer
  • Brand name
    Obo Pro.2
  • Frequenza [Hz]
    0.4kHz
  • Tono
    Single
  • dB
    95
  • Voltage[V]
    20 - 28V
  • Dimension [mm;mt]

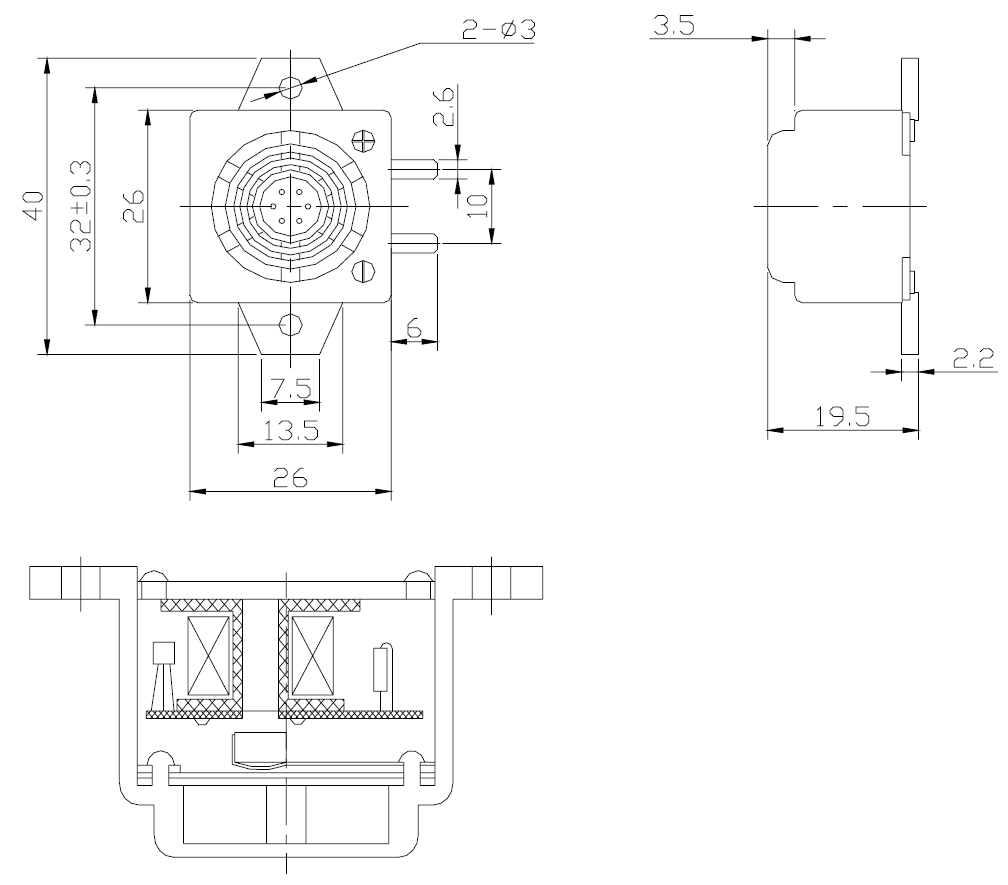

    40x26x19.5mm
  • Data sheet
    download OBO-2624F.pdf

Obo Pro.2

Buzzer -> Magnetic transducer -> SMD Magnetic Transducer

Image Code Frequenza [Hz] Tono dB Voltage[V] Dimension [mm;mt]
VhINHPCYmJqhzUp OBO-0905S-A2

2.7kHz
|
-
|
87
|
4 - 7V
|
8.5x8.5x3mm

 2.7kHz - 87 4 - 7V 8.5x8.5x3mm SMD Magnetic Transducer 87db Min. At 2700hz-5Vo-p 8.5x8.5mm
txxXDHScpyucr19 OBO-100UN1

2.4kHz
|
-
|
85
|
8 - 16V
|
12.8x12.8x10mm

 2.4kHz - 85 8 - 16V 12.8x12.8x10mm SMD Electromagnetic Transducer 85db Min. At 2.4Khz-12Vdc 12.8x12.8x10mm with Internal Drive Type
OBO-50UP1

2.7kHz
|
-
|
82
|
4 - 7V
|
9.6x9.6x5.5mm

 2.7kHz - 82 4 - 7V 9.6x9.6x5.5mm SMD Electromagnetic Transducer 82db min. at 2.7Khz/5Vdc 9.6x9.6x5.5mm
OBO-65AN1

2.4kHz
|
-
|
90
|
3 - 8V
|
12.8x12.8x6.5mm

 2.4kHz - 90 3 - 8V 12.8x12.8x6.5mm SMD Electromagnetic Transducer 90db min. at 2400hz/5Vo-p
OBO-65UN1

2.4kHz
|
-
|
85
|
4 - 7V
|
12.8x12.8x6.5mm

 2.4kHz - 85 4 - 7V 12.8x12.8x6.5mm SMD Electromagnetic Transducer 85db min. at 2.4Khz/5Vdc 12.8x12.8x7mm with Internal Drive Type
RGGdoJ6U3RyOtEi OBO-30AP1

2.7kHz
|
-
|
85
|
2 - 4V
|
8.5x8.5x3mm

 2.7kHz - 85 2 - 4V 8.5x8.5x3mm SMD Electromagnetic Transducer 85db min. at 2700hz/3Vo-p 8.5x8.5x3mm
OBO-30AX1

4.0kHz
|
-
|
70
|
2 - 5V
|
5x5x3mm

 4.0kHz - 70 2 - 5V 5x5x3mm Smd-magnetic Transducer 8.5x8.5x3mm 70db
OBO-40AL1

2.3kHz
|
-
|
87
|
2 - 4V
|
8.5x8.5x4mm

 2.3kHz - 87 2 - 4V 8.5x8.5x4mm SMD Electromagnetic Transducer 87db min. at 2300hz/3Vo-p 8.5x8.5x4mm
OBO-40AP1

2.7kHz
|
-
|
90
|
2 - 4V
|
8.5x8.5x4mm

 2.7kHz - 90 2 - 4V 8.5x8.5x4mm SMD Electromagnetic Transducer 90db min. at 2700hz/3Vo-p 8.5x8.5x4mm
XQNctZVBtauyq0g OBO-45BP1

2.7kHz
|
-
|
85
|
2 - 4V
|
Ø9mm

 2.7kHz - 85 2 - 4V Ø9mm SMD Electromagnetic Transducer 85db Min. At 2700hz-3Vo-p Φ9.0x4.5mm
acnvPYHi9Y2m5Mp OBO-2624F

0.4kHz
|
Single
|
95
|
20 - 28V
|
40x26x19.5mm

 0.4kHz Single 95 20 - 28V 40x26x19.5mm SMD Electromagnetic Transducer 95db Min. At 400hz-20-28Vo-p 40x26x19.5mm
foCGcXnhFzKjuAD OBO-30AR1

2.5kHz
|
-
|
85
|
2 - 4V
|
8.5x8.5x3mm

 2.5kHz - 85 2 - 4V 8.5x8.5x3mm SMD Electromagnetic Transducer 85db Min. At 2500hz-3Vo-p 8.5x8.5x3mm
PdcoAgGVqhYuM7B OBO-32AS1

2.7kHz
|
-
|
90
|
3 - 5V
|
8.5x8.5x3mm

 2.7kHz - 90 3 - 5V 8.5x8.5x3mm SMD Electromagnetic Transducer 90db/5cm min. at 2730hz/3.6Vo-p 8.5x8.5x3.2mm
xITOKnJlUvB9Dxm OBO-40BS2

2.7kHz
|
-
|
85
|
2 - 4V
|
Ø9mm

 2.7kHz - 85 2 - 4V Ø9mm SMD Electromagnetic Transducer 85db min. at 2730hz/3Vo-p Φ9.0x4.0
OBO-40BS3

2.7kHz
|
-
|
85
|
4 - 6V
|
Ø9mm

 2.7kHz - 85 4 - 6V Ø9mm SMD Electromagnetic Transducer 85db Min. At 2730hz-5Vo-p Φ9.0x4.0
oibwfUuSPbPG0a5 OBO-45AL1

2.3kHz
|
-
|
87
|
2 - 4V
|
8.5x8.5x4.5mm

 2.3kHz - 87 2 - 4V 8.5x8.5x4.5mm SMD Electromagnetic Transducer 87db min. at 2300hz/5Vo-p 8.5x8.5x4.5mm
ntjwNXvTqxdk5 OBO-32AP3

2.7kHz
|
-
|
85
|
2.5-4.5V
|
10x10mm

 2.7kHz - 85 2.5-4.5V 10x10mm SMD Electromagnetic Transducer 85db/10cm min. at 2700hz/3.6Vo-p 10x10x3.2mm
