OBO-15230

Titolo certificazioni

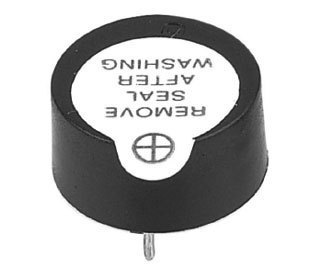

Buzzer Piezoelectric Buzzer Con Driver Esterno
Buzzer 80db At 3.5Khz- 9Vp-p Square Wave Ø14x7.5mm Without Driver

Documentazione

Tipo

Buzzer Piezoelectric Buzzer Con Driver Esterno
Marchio

Obo Pro.2
Alternativa a
- KPE-166
- PT-1250P
- PE14P40A
- F/EM12P
- HPM14A
- SPT14
Frequenza [Hz]

3.5kHz
Tono

-
dB

80
Voltage[V]

9V
Dimensione [mm;mt]

Ø14x7.5mm
Scheda tecnica

15230.pdf
Altri articoli correlati

BUZZER & SPEAKER

Obo Pro.2

Buzzer -> Piezoelectric Buzzer -> Con Driver Esterno

Buzzer piezoelettrico con oscillatore esterno

Codice	Frequenza [Hz]	Tono	dB	Voltage[V]	Dimensione [mm;mt]
OBO-11250PA 5.0kHz \| - \| 80 \| 9V \| Ø10.5x8mm	5.0kHz	-	80	9V	Ø10.5x8mm	Buzzer 80db at 5.0Khz/ 9Vp-p Square Wave ø10.5x4mm Without Driver
OBO-11250PB 5.0kHz \| - \| 80 \| 9V \| Ø10.5x4mm	5.0kHz	-	80	9V	Ø10.5x4mm	Piezo Buzzer 80db at 5.0Khz/ 9Vp-p Square Wave ø10.5x4mm Without Driver
OBO-14240PA 4.0kHz \| - \| 80 \| 9V \| Ø14x7.5mm	4.0kHz	-	80	9V	Ø14x7.5mm	Buzzer 80db at 4.0Khz/ 9Vp-p Square Wave ø14x7.5mm Without Driver
OBO-14240PA-H01 4.0kHz \| - \| 82dB \| 9V \| Ø14mm	4.0kHz	-	82dB	9V	Ø14mm	BUZZER Ø14 P=5mm 82/70db square/sine wave without DRIVER
OBO-14240PC 4.0kHz \| - \| 80 \| 9V \| Ø14x7.5mm	4.0kHz	-	80	9V	Ø14x7.5mm	Buzzer 80db at 4.0Khz/ 9Vp-p Square Wave ø14x7.5mm Without Driver
OBO-152 4.0kHz \| - \| 80 \| 9V \| Ø16.5x4mm	4.0kHz	-	80	9V	Ø16.5x4mm	Buzzer 80db at 4.0Khz/ 9Vp-p Square Wave Ø16.5x4mm Without Driver
OBO-20235 4.0kHz \| - \| 85 \| 9V \| Ø24x5.5mm	4.0kHz	-	85	9V	Ø24x5.5mm	Buzzer Ø24x5,5mm 85/75dB square/sine wave ext.Drive w/wire
OBO-272 4.4kHz \| - \| 90 \| 9V \| Ø30x5.5mm	4.4kHz	-	90	9V	Ø30x5.5mm	BUZZER Ø30 mm senza il driver interno
OBO-35C1-012 2.8kHz \| Continuous \| 88db \| 3-30V \| Ø42x16mm	2.8kHz	Continuous	88db	3-30V	Ø42x16mm	Buzzer Ø42x16mm 88db Min. At 2.8±0.5Khz-DC 9V w/ lead Wire+CNT DC 3 to 30V
OBO-35T4 0.8kHz \| - \| 80 \| 9V \| Ø44x14mm	0.8kHz	-	80	9V	Ø44x14mm	BUZZER Ø44x14mm 80dB at 800Hz 9V
OBO-13240 4.1kHz \| - \| 80 \| 9V \| Ø12.6x7mm	4.1kHz	-	80	9V	Ø12.6x7mm	Buzzer 80db at 4.0Khz/ 9Vp-p Square Wave Ø12.6x7mm Without Driver
OBO-13240PA-F01 4.0kHz \| - \| 80 \| 3-30V \| Ø12.5x7mm	4.0kHz	-	80	3-30V	Ø12.5x7mm	Buzzer Ø12,5x7 P=7,6mm 80dBmin@4Khz ext. Drive NewV.
OBO-15230 3.5kHz \| - \| 80 \| 9V \| Ø14x7.5mm	3.5kHz	-	80	9V	Ø14x7.5mm	Buzzer 80db At 3.5Khz- 9Vp-p Square Wave Ø14x7.5mm Without Driver
OBO-15240PA 4.0kHz \| - \| 80 \| 9V \| Ø17x8mm	4.0kHz	-	80	9V	Ø17x8mm	Buzzer 80db at 4.0Khz/ 9Vp-p Square Wave Ø17x8mm Without Driver
OBO-20205PA 4.0kHz \| - \| 85 \| 9V \| Ø22x8mm	4.0kHz	-	85	9V	Ø22x8mm	Buzzer 85db at 4.0Khz/ 9Vp-p Square Wave ø22x8mm Without Driver
OBO-27225 2.5kHz \| - \| 85 \| 9V \| Ø30x11,2mm	2.5kHz	-	85	9V	Ø30x11,2mm	Buzzer Ø30x11,2 P=15mm 85/75dB square/sine wave ext.Drive
OBO-22240PA 4.0kHz \| - \| 90 \| 12V \| Ø22x12mm	4.0kHz	-	90	12V	Ø22x12mm	Buzzer 90db at 4.0Khz/ 12Vp-p Square Wave ø22x12mm
OBO-50240 0.7kHz \| - \| 80 \| 9V \| Ø48x2mm	0.7kHz	-	80	9V	Ø48x2mm	Piezoelectric Buzzer 80db min. at 700Hz / 9Vp-p Square Wave ø48x2mm with Wire
OBO-35T6 0.8kHz \| - \| 80 \| 9V \| Ø44x14mm	0.8kHz	-	80	9V	Ø44x14mm	Buzzer Ø44x14mm 80db/70dB@0,8KHz square/sine wave, External Drive, wire
OBO-30245-W 4.5kHz \| - \| 97 \| 10V \| Ø30x5.1mm	4.5kHz	-	97	10V	Ø30x5.1mm	Buzzer Ø30x5.1mm 97dB Min.at 4.5KHz/10.0Vp-pSquareWave/10cm w/wire
OBO-09220SD 2.0kHz \| - \| 72 \| 5V \| 9x9x2mm	2.0kHz	-	72	5V	9x9x2mm	BUZZER 9x9x2mm 72dB Min. at 2.0 KHz/5.0V 13,000pF±30% at 1KHz
OBO-35T2-037 80 \| Ø34,5x9mm			80		Ø34,5x9mm	Buzzer Ø34,5x9mm 80db@1,2Khz square wave w/ Wire
OBO-42228WA-D01 2.8kHz \| - \| 92db \| 5-24V \| Ø41,8x16mm	2.8kHz	-	92db	5-24V	Ø41,8x16mm	Buzzer Ø41.8x16mm 92db 2.8±0.5Khz w/ Wire + F.CNT 2pin 2.54 DC5to24V
